GTI 3991 Aerosol Photometer

Aerosol Photometer Model 3991

GMP Three-Level Privileged Management;
Large 8.4inch LCD Touch Screen;
Lithium Battery Power Supply;
Infrared Scanning Probe;
Built-in Thermal Printer.

Availability:

in stock

Compare Compare

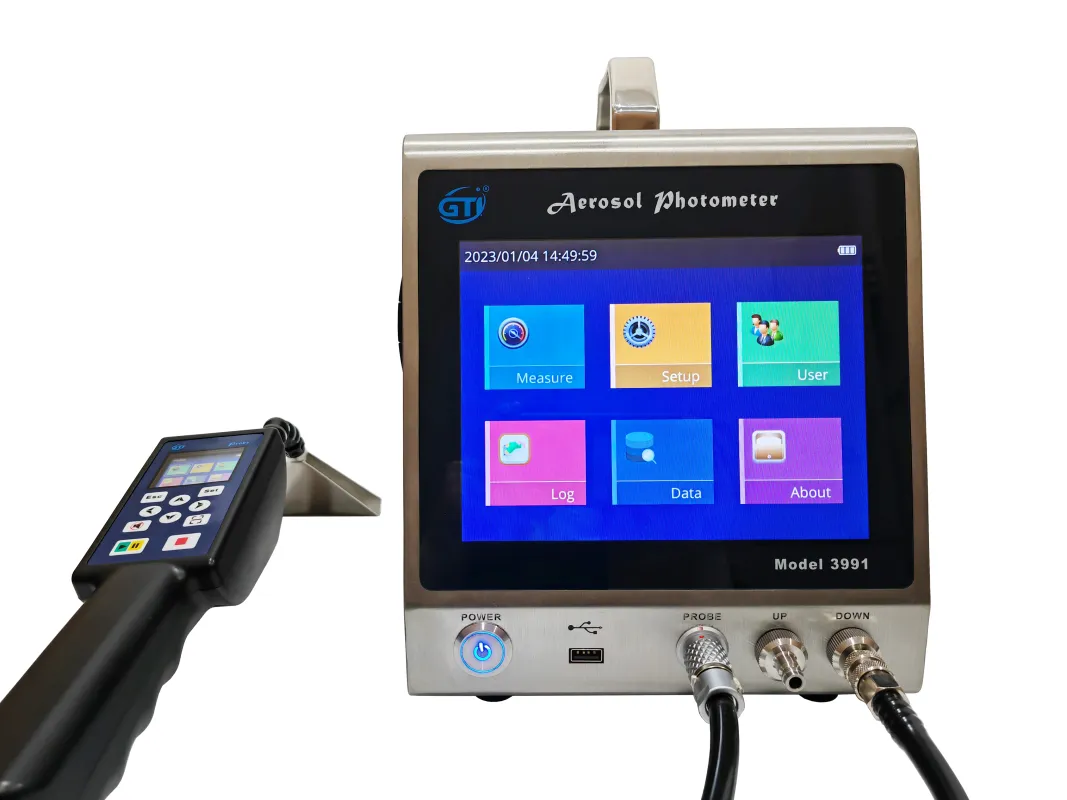

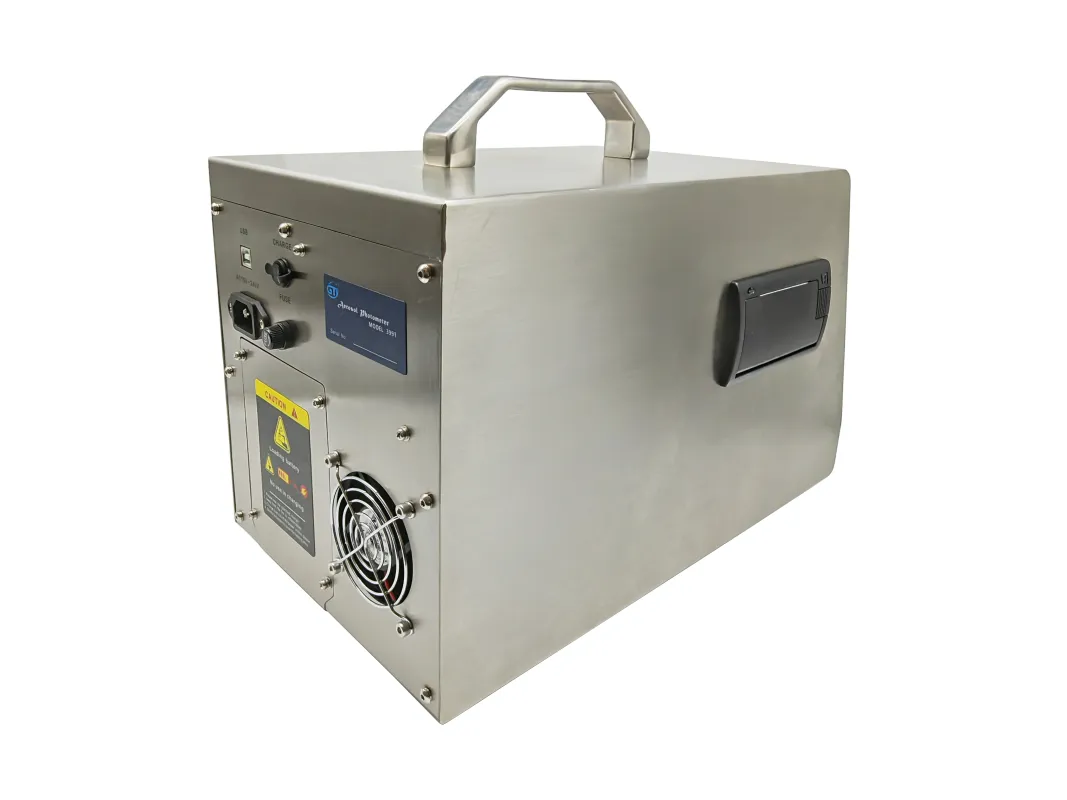

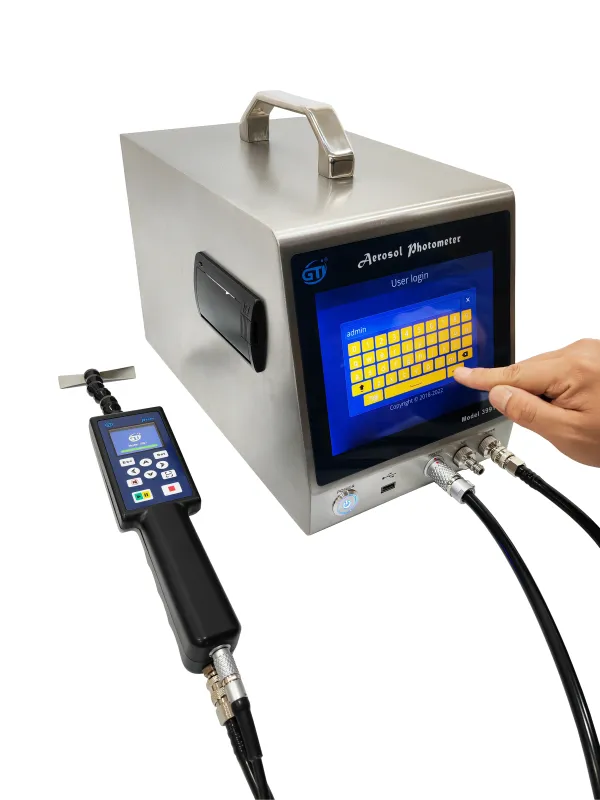

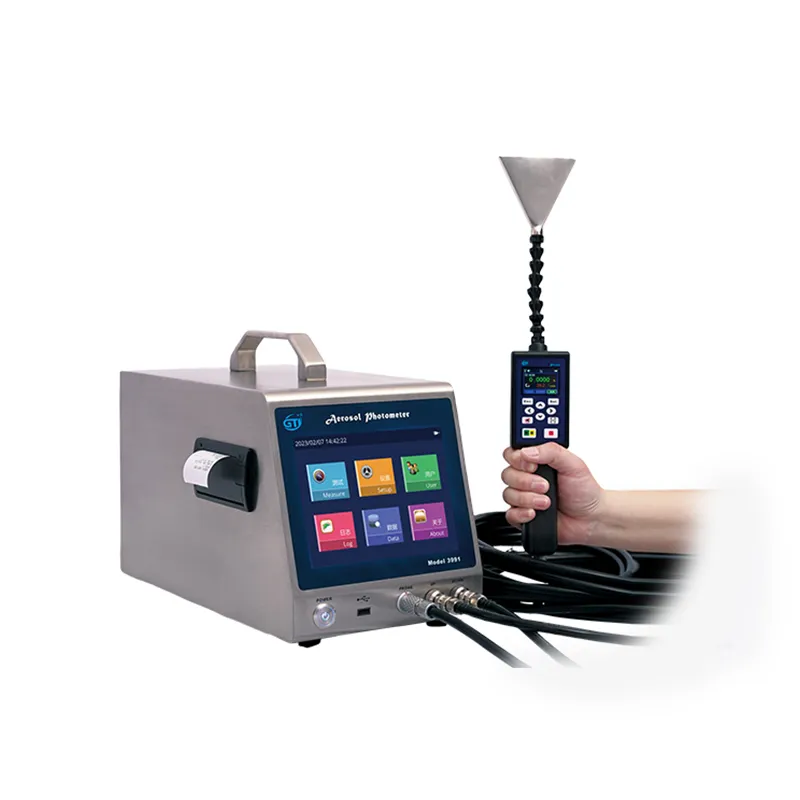

GTI 3991 is a light-scattering linear digital aerosol photometer that subverts the traditional design with advanced technology and scientific design.

After the HEPA filter is put into operation, if there are leaks or gaps due to insufficient installation, the predetermined purification effect will not be achieved, and a leak integrity test must be performed on the high-efficiency filter. Due to the low concentration of atmospheric dust upstream of the tested high-efficiency filter, it is necessary to use an aerosol generator to supplement dust generation to meet the test conditions. Use 3991 aerosol photometer to test the concentration of suspended particulate matter upstream of the high-efficiency filter and conduct a uniform-speed scanning test downstream to know the leak rate of the tested high-efficiency filter, which is convenient for the identification and quantification of leak points, and can be used as a reference for repair.

Categories: Aerosol Photometer, Portable, Pressure

There are no reviews yet.

Be the first to review “GTI 3991 Aerosol Photometer” - Cancel quote

You must be logged in to post a review.

[contact-form-7 id="752" title="Question & Answer"]

Questions and answers of the customers

There are no questions yet, be the first to ask something for this product.

Specifications

Model	3991
Data Accuracy	0.0001~100.0% 8.4inch Touch LCD Screen
Dynamic Range	0.0001µg/L～600µg/L
Accuracy	1% of Readings（0.01~100%）
Repeatability	0.5% of Readings （0.01~100%）
Flow Control	1cfm （28.3L/min）±5%
Zero Building	Automatic or manually
Alarm Modes	Audible, visual and vibratory
Power-Saving Mode	Lower energy consumption
Reporting Modes	Continuous, Summary, Monitoring mode
Print	Built-in thermal printer
ID Encode	ID scanning, data classify and traceable.
Data Output	Storage, USB, Print; Logs can be traced and stored
Data Storage Capacity	100,000 Groups
Communication	USB is connected with PC continuous scanning testing is available.
GMP Three-Level Privileged Management	Contains three-level permission management, which can set identities and assign usage permissions; it can be done with Log Report
Language	English
Reagent Settings	PAO、DOP、Ondina、PolvethleneGlvcol.Corn Oil、MineralOil、Paraffin Oi, etc.
Sampling Port	Standard internal rectangular sampling port without unnecessary corners
Shell Material	SUS304 stainless steel
Temp. & Humidity	5～50°C (No condensation, no freezing); 5~95%RH
Storage Temp.	-20C~60°C (Relative humidity below 95%, no condensation)
Power	AC100~240V 50/60Hz or lithium battery (optional with built-in lithium battery pack)
Dimension/Weight	Approx.220x260 (handle 300) x 390mm (W x H x L) 11.1kg (photometer) probe and accessories 1kg
Reference complied	NSF49、IEST、ISO14644、EN61010-1:2010、EN61326:2006

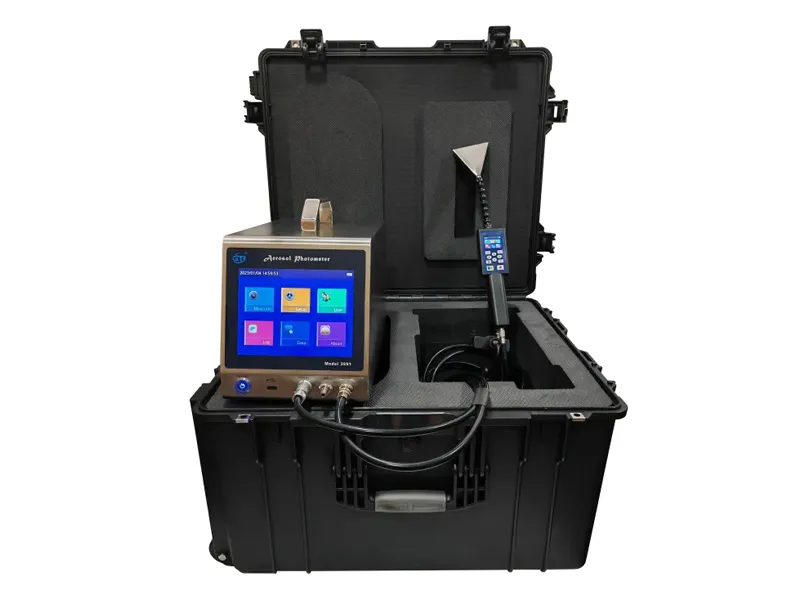

What’s included	Photometer, scanning probe, sampling air pipe, manual, certification, power cord, carrying case
Accessories	Lithium battery (built-in), AC/DC, circular sampling port, square sampling port
