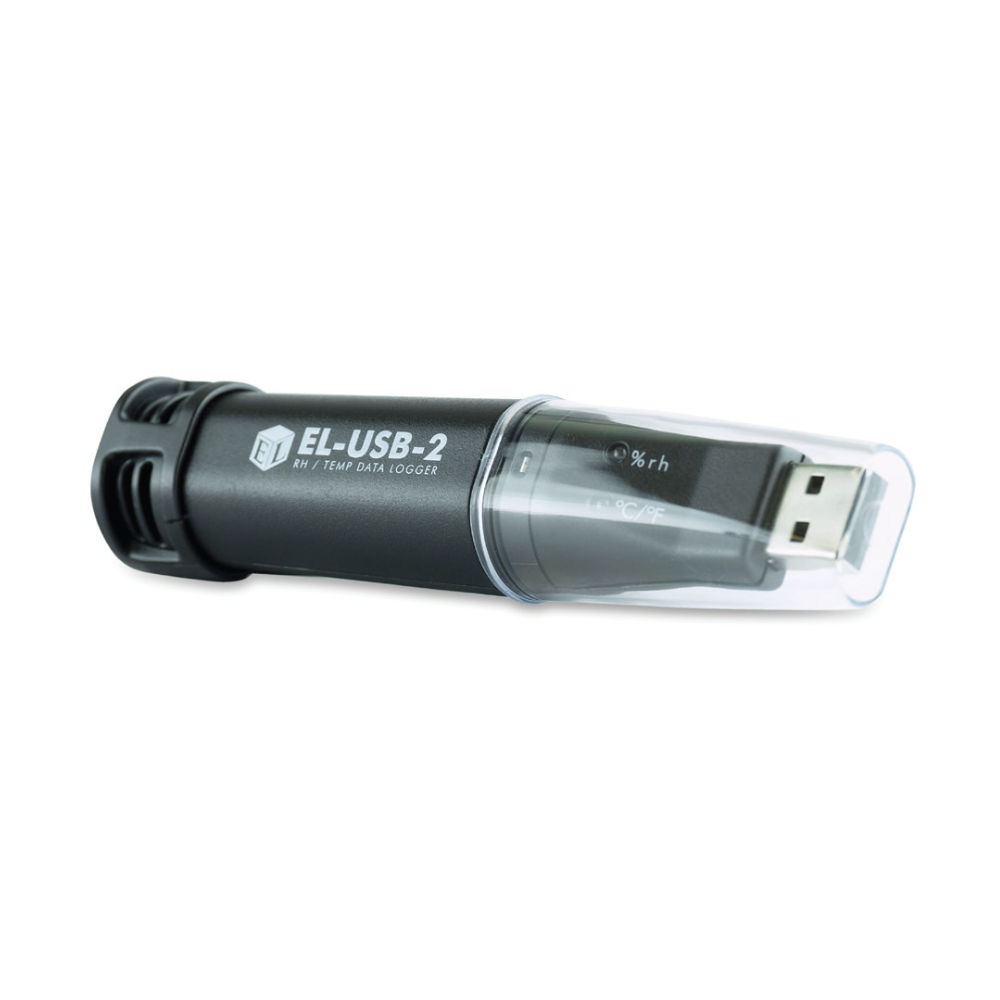

This standalone data logger measures and stores over 16,000 temperature and humidity readings from -35 to +80°C (-31 to +176°F)
and 0 to 100%RH range at a resolution of 0.5°C (1°F) and 0.5%RH.

The user can easily set up the logger and view downloaded data by plugging the data logger into a PC’s USB port and using the
free EasyLog software. Data, including calculated dew point, can then be graphed, printed and exported to other applications for
detailed analysis.

The data logger is supplied with a lithium metal battery, giving up to three years’ logging life. The logger is protected against ingress
from water and dust to IP67 standard when the cap is fitted.

SPECIFICATIONS
Temperature Measurement range: -35°C to 80°C (-31°F to 176°F)
Internal resolution: 0.5°C (1°F)
Accuracy (overall error)*: 0.45°C (1.04°F) typical (5 to 60°C)
Long term stability: <0.02°C (0.04°F) / year
Relative Humidity Measurement range: 0 to 100%RH
Internal resolution: 0.5%RH
Accuracy (overall error)*: 3%RH (20 to 80%RH)
Long term stability: <0.25%RH / year
Dew Point Accuracy (overall error)*: 1.7°C typical (-35 to 80°C, 40 to 100%RH)
Logging rate: User selectable between 10 seconds & 12 hours
Operating temperature range: -35 to +80°C (-31 to +176°F)
Battery life: 3 years (at 25°C and 1 minute logging rate)
Readings: 16,382 temperature, 16,382 relative humidity
Dimensions: 108 x 25 x 22mm (4.25 x 0.98 x 0.86”)
* The overall error takes in to account the sensor accuracy (as shown on page 3) and the resolution of the data logger

Download Datasheet: Spec_Lascar_EL-USB-2
